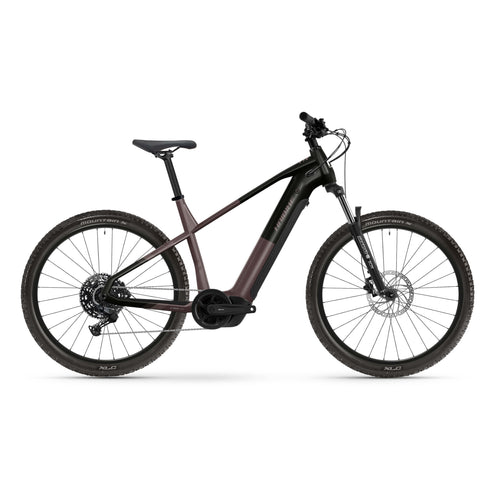

Haibike Alltrack 4

Fun off-road, fun on-road. The HAIBIKE ALLTRACK 4 is the ideal introduction to the world of e-hardtails. Its strong component mix makes sure of that: the powerful Bosch Performance Line PX motor supports you across all terrains. Reliable Shimano shifting and strong disc brakes keep your ride safe and smooth. The 600Wh battery gives you endurance for tours that go well beyond your usual routes. Versatile: the wide XLC knobbly tyres roll smoothly on gravel and tarmac alike – for maximum riding enjoyment on any terrain.

• Alloy Frame

• Suntour XCM34 120mm Fork

• Bosch Performance Line PX

• 600Wh Powertube Battery

• Shimano CUES 9 Speed Gearing

Specification

Frame and Forks

• Forks: XCM34-Boost NLO 15AH4-110 120mm

• Headset: FP-H856U ZS44 + ACROS BlockLock ZS56

Drivetrain

• Crankset: CR-E18 Crankset + CR-E15 Chainring Bosch BDU38

• Rear Derailleur: CUES RD-U4000 9s, Shadow

• Cassette: CUES CS-LG300-9, HG

• Chain: EGlide With EPT Coating 9-11s

Braking/Shifting

• Rear Shifter: CUES SL-U4010-9R, Rapidfire+

• Front Brake: HD-M280, 2 Pistons, 180mm

• Rear Brake: HD-M280, 2 Pistons, 180mm

• Front Rotor: TR180-53 180mm, 6 Bolt Disc

• Rear Rotor: TR180-53 180mm, 6 Bolt Disc

• Brake Levers: HD-M280-BL

Wheels

• Rims: WR-M37 Disc 30/584 32 Hole 6,5mm Valve

• Front Hub: HF-M15 Boost 15 x 110mm, 32H, 6 Bolt Disc

• Rear Hub: HR-M15 Boost 12 x 148mm, 32H, 6 Bolt Disc, HG

• Spokes: Sapim

• Tyres: VT-M30 Cirrus

Finishing Kit

• Handlebars: HB-M32, Dia. 31.8mm, Rise: 20mm, Backsweep 9°

• Handlebar Width: 780mm

• Grips: MTB Grip Set VLG-1751D2

• Stem: ST-M34, Dia. 31.8mm, L: 50mm, +/-7°, A-Head

• Stem Length: 50mm

• Seatpost: SP-R30, Dia. 34.9mm, L: 300mm

• Saddle: SA-S10 143mm Sport

• Pedals: Flat Pedal PD-M29 with Reflector + Integrated Pins

Electric Power

• Battery: InTube 600Wh

• Battery Charger Type: Charger 4A 220-240V

• Display: LED Remote
